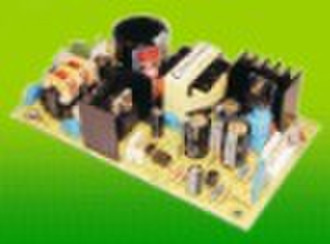

15W open frame Single Output

15W AC/DC Single Output Series- With CE Approvel Universal AC input/full rangeHigh reliabilityMinature PCB structure100%full load burn-in testProtections: overload/over voltage/short circuit/over tempCooling method: convection100*46*22(mm) AC input voltage range……………………85 264VACInrush current……………………cold start 15A/230VLine Regulation(full load)……………………≤±0.5%Output voltage adjust range……………………±10%Output overload protection……………………110 150%,hiccup mode,auto recovryOutput overvoltage protection……………………115 150%Output temp. protection……………IC,Tj:135°C,power shutdownWithstand voltage……………………I/P-F/G:3.0KVAC /1min;I/P-F/G:1.5KVAC/1MINO/P-F/G:0.5KVAC/1minRise,Hold up time…………………………50ms,20ms at full load(typical)Hold up time………………………Operating temp.&humidity………………-10°C +50°C,20% 93%RH(non condensing)Storage temp.&humidity…………………-20°C +85°C,20% 95%RH(non condensing)Connection……………………2P/2.54MM,2P/3.96MM pitchModelDC OutputRipple&NoiseEfficiencyBR15W-SPL-55V3.0A60MV68%BR15W-SPL-1212V1.3A80MV74%BR15W-SPL-2424V0.6A150MV76%BR15W-SPL-4848V0.3A200MV77%
