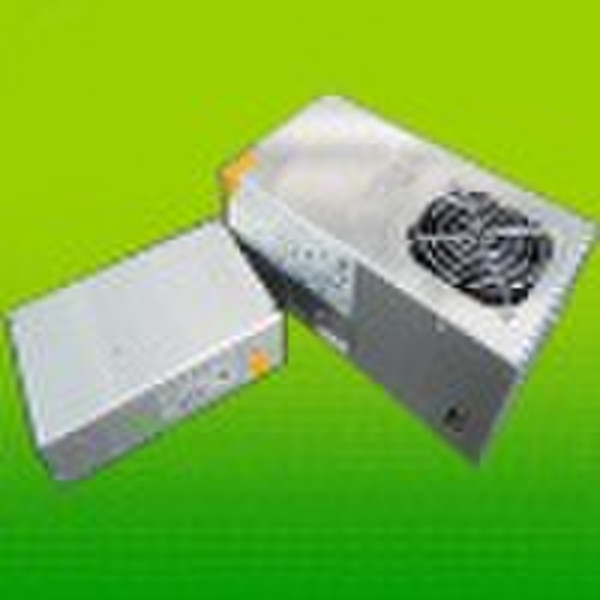

150W single output switching power supply

SpecificationMODEL BR150W-S-5 BR150W-S-7.5 BR150W-S-12 BR150W-S-24 BR150W-S-36 OUTPUT DC VOLTAGE 5V 7.5V 12V 24V 36V RATED CURRENT 30A 20A 12.5A 6.2A 4.1A RATED POWER 150W 150W 150W 148.8W 147.6W LOAD REGULATION +0.5% +0.5% +0.5% +0.5% +0.5% RIPPLE 120mV 120mV 120mV 150mV 200mV CURRENT RANGE 0∼30A 0∼20A 0∼12.5A 0∼6.2A 0∼4.1A VOLTAGEADJ. RANGE ABOUT +10% SETUP,HOLD TIME 50ms,20ms (typical value) INPUT VOLTAGE RANGE 85∼132VAC /185∼264VAC(selected by switch) FREQUENCY RANGE 47∼63HZ EFFICIENCY 78% 80% 82% 85% 86% INRUSH CURRENT (COLD STATE) 20A/115V ,40A/230V LAKAGE CURRENT <0.7mA/230VAC PROTECTIONOver load (110-130%),Over current(110-130%),Over voltage ,rated current, limited current, recover automatically INSULATION RESISTANCE I/P-O/P:3.0KVAC/1MIN ,IP-F/G:1.5KVAC/1MIN,O/P-F/G:0.5KVAC/MIN WORK ENVIRONMENT -10°C∼+60°C,20%∼90%RH non-condensing STORAGE ENVIRONMENT -20°C∼+85°C,20%∼95%RH non-condensing COOLING METHOD free air convection DIMENSION 199*110*50mm(L*W*H) standards UL,CE, CCC OTHERS All parameters not specially mentioned are measured at230VAC input, rated load and 25°C of ambient temperature
